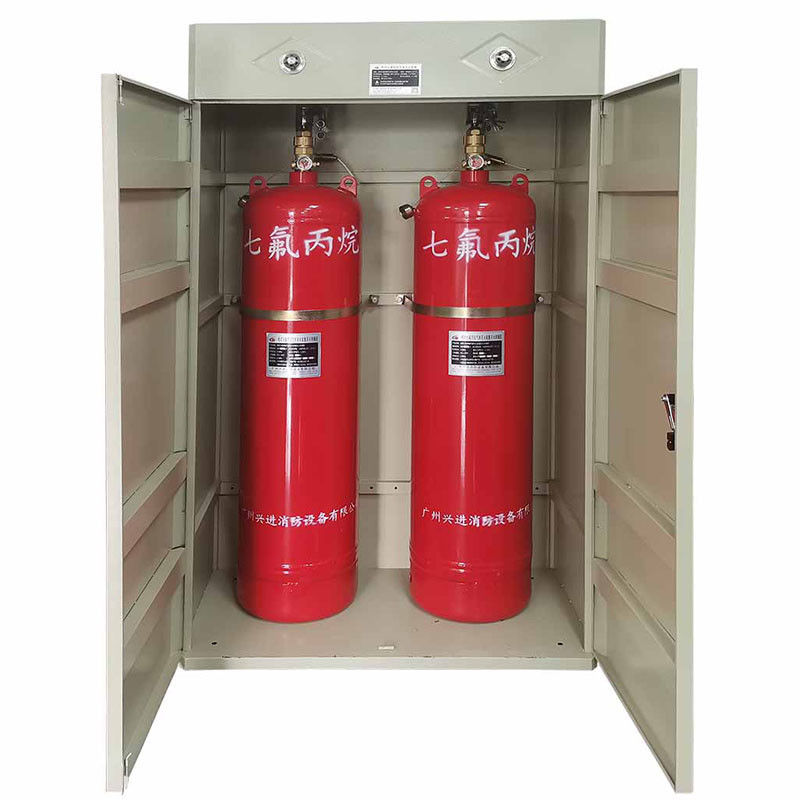

FM200 cabinet type fire extinguishing gas device
Product Introduction:
Fm200(hfc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.
Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator
automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.
Applications:
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying
equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.
Product Parameters:
| specification |
Technical Parameter |
| Filling pressure |
2.5Mpa |
| Relief pressure |
5.0±0.225Mpa |
| Spraying time |
≤10s |
| Working temperature |
0～50℃ |
| Power |
DC24V/1.6A |
| max working pressure |
4.2Mpa |
|
 |
|
Specifications
|
Maximum filling volume(kg) |
20℃ Storage pressure(MPa) |
Injection time(s) |
(Operating temperature℃) |
External dimensions Length, width and height(mm) |
| GQQ40/ 2.5 |
40 |
2.5 |
<10 |
0～50 |
500×450×1450 |
| GQQ70/ 2.5 |
70 |
2.5 |
<10 |
0～50 |
500×450×1450 |
| GQQ90/ 2.5 |
90 |
2.5 |
<10 |
0～50 |
500×450×1650 |
| GQQ100/ 2.5 |
100 |
2.5 |
<10 |
0～50 |
500×450×1650 |
| GQQ120/ 2.5 |
120 |
2.5 |
<10 |
0～50 |
550×550×1900 |
| GQQ150/ 2.5 |
150 |
2.5 |
<10 |
0～50 |
550×550×1900 |
| GQQ180/ 2.5 |
180 |
2.5 |
<10 |
0～50 |
600×550×2150 |
| GQQ70×2/ 2.5 |
140 |
2.5 |
<10 |
0～50 |
1100×450×1450 |
| GQQ90×2/ 2.5 |
180 |
2.5 |
<10 |
0～50 |
1100×450×1650 |
| GQQ100×2/ 2.5 |
200 |
2.5 |
<10 |
0～50 |
1100×450×1650 |
| GQQ120×2/ 2.5 |
240 |
2.5 |
<10 |
0～50 |
1100×550×1900 |
| GQQ150×2/ 2.5 |
300 |
2.5 |
<10 |
0～50 |
1100×550×1900 |
Competitive Advantage:
In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.
Another one is that fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.
It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.
Different from piped network type of fm200 automatic fire suppression system, it will be simple to install. Because there is no pipeline installation. If your protective zone is relatively small and there is no multiple zones more than three, it will save much money than the former.
