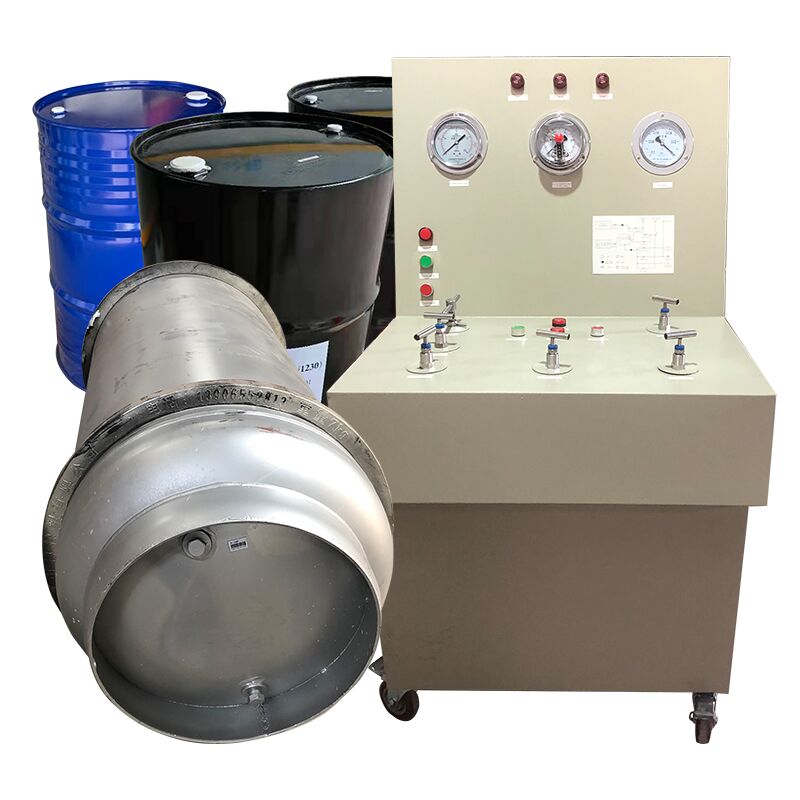

Heptafluoropropane perfluorohexanone fire extinguishing agent filling equipment

Name: Heptafluoropropane perfluorohexanone fire extinguishing agent filling equipment
Brand: Guangzhou Xingjin Fire Equipment Co.,Ltd.
SKU: XJ-QEO-006
Price: 1,108.00 USD
Availability: InStock

Rincian produk

Tempat asal: Guangzhou, Cina

Nama merek: XINGJIN

Sertifikasi: CCC,CAC,ROHS

Nomor model: XJ-QEO-006

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 5 set

Harga: Pricing based on quantity

Kemasan rincian: Kotak kayu atau kotak luar kayu lapis dengan tas atau kertas gelembung

Waktu pengiriman: 15-20 hari

Syarat-syarat pembayaran: T/t, l/c

Menyediakan kemampuan: 30000Set/bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Rincian produk

Menyoroti:

Tekanan output obat:	0 ~ 3,6 MPa	Mengisi alarm tekanan:	0~10 MPa (Dapat disesuaikan, Lampu Alarm Akan Menyala
Akurasi mengisi:	± 0,5%	Persyaratan Daya:	AC 220V,50Hz
Utas koneksi eksternal:	Benang untuk Saluran Masuk dan Keluar Reagen serta Nitrogen	Merek dagang:	Xingjin
Kapasitas produksi:	30000 set per bulan	Rentang dekompresi nitrogen:	0~10 MPa Dapat Disesuaikan (Biasa Digunakan: 4,2 MPa, 5,6 M
Gelar Vakum:	≤ -0,09 MPa	kepadatan pengisian:	≤ 1420 kg/m³
Suhu sekitar:	0 ~ 50 ℃	Ukuran peralatan:	720 × 800 × 1280 mm (tidak termasuk pelari)
Paket transportasi:	Kotak Kayu atau Kotak Luar Kayu Lapis dengan Tas Gelembung atau	Asal:	Guangzhou, Cina

Tekanan output obat:	0 ~ 3,6 MPa
Mengisi alarm tekanan:	0~10 MPa (Dapat disesuaikan, Lampu Alarm Akan Menyala
Akurasi mengisi:	± 0,5%
Persyaratan Daya:	AC 220V,50Hz
Utas koneksi eksternal:	Benang untuk Saluran Masuk dan Keluar Reagen serta Nitrogen
Merek dagang:	Xingjin
Kapasitas produksi:	30000 set per bulan
Rentang dekompresi nitrogen:	0~10 MPa Dapat Disesuaikan (Biasa Digunakan: 4,2 MPa, 5,6 M
Gelar Vakum:	≤ -0,09 MPa
kepadatan pengisian:	≤ 1420 kg/m³
Suhu sekitar:	0 ~ 50 ℃
Ukuran peralatan:	720 × 800 × 1280 mm (tidak termasuk pelari)
Paket transportasi:	Kotak Kayu atau Kotak Luar Kayu Lapis dengan Tas Gelembung atau
Asal:	Guangzhou, Cina

Deskripsi Produk

Professional Novec 1230 Cylinder Filling Machine for Fire Suppression Systems

Product Description:
The perfluorohexanone fire extinguishing agent filling equipment is a professional device that combines efficiency, safety, and precision, suitable for the maintenance and installation of perfluorohexanone fire extinguishing systems. Equipped with nitrogen pressure reduction, a filling pressure alarm, a vacuum system, and a reserved interface for weight alarm nodes, the equipment supports a variety of gas cylinder sizes, ensuring airtightness and accuracy during the fire extinguishing agent filling process.

Equipment valve body function:

F1 Pressure Reducing Valve	Control the pressure of nitrogen when it enters the system to ensure a stable and safe filling process.
F2 pressure relief valve	Release excess pressure in an emergency to protect equipment and gas cylinders from high pressure damage.
F3 Chemical Storage Valve	Control the flow of fire extinguishing agent from the agent storage tank to the filling cylinder.
F4 Nitrogen Storage Valve	Control the nitrogen gas from the storage tank into the equipment pipeline to provide pressure for filling the fire extinguishing agent.
F5 gas cylinder valve	Used to connect fire extinguishing agent cylinders and control the opening or closing of the cylinder fluid channel.
F6 Vacuum Valve	Used to open or close the extraction of air from the gas cylinder to reduce the pressure inside the cylinder and ensure the purity of the fire extinguishing agent.
F7 valve	Control the flow of perfluorohexanone into the gas cylinder
F8 valve	Controlled access to gas cylinders
F9 valve	Control the passage of nitrogen into the gas cylinder and provide pressure for the gas cylinder.

Heptafluoropropane filling operation:

1 After the cylinder is valved, move it to the filling room. Secure the cylinder and connect the piping between the cylinder and the filling station. Adjust the electric contact pressure gauge alarm and the pressure reducing valve outlet pressure. Open the cylinder container valve and slowly open nitrogen valve F2 to fill with nitrogen, controlling the pressure increase rate to no more than 1 MPa/min, until the pressure reaches the specified maximum operating pressure (see Appendix 3, "Test Pressure Comparison Table" for details). Close the cylinder container valve and move the cylinder to the pressure test room for a cylinder seal test.

2 After the cylinder seal test passes, move it to the filling room's platform scale. Secure the cylinder and connect the piping between the cylinder and the filling station. Open the cylinder container valve and open the pressure relief valve F4 on the filling station to relieve the pressure. After pressure relief is complete, pressurize the filling station vacuum button and simultaneously open vacuum valve F5. Start the vacuum pump to evacuate the cylinder. When the pressure gauge pointer approaches -0.09 MPa and stabilizes, close vacuum valve F5 and the vacuum pump in sequence.

For more detailed operating instructions please contact us!

Vacuum control schedule:

Volume	8L-30L	40L	70L	90L	100L	120L	150L	180L
Minimum vacuum time	30s	40S	50S	56S	60S	65S	78S	93S
