Guangzhou Xingjin Fire Equipment Co.,Ltd. info@xingjin-fire.com 86--18011936582
Rincian produk
Tempat asal: Guangzhou, Cina
Nama merek: XINGJIN
Sertifikasi: CCC,CAC,ROHS
Nomor model: XJ-QEO-006
Syarat Pembayaran & Pengiriman
Kuantitas min Order: 1 Set Sistem
Harga: Pricing based on quantity
Kemasan rincian: Kotak kayu atau kotak luar kayu lapis dengan tas atau kertas gelembung
Waktu pengiriman: Menurut kuantitas produk
Syarat-syarat pembayaran: T/T, L/C
Menyediakan kemampuan: 3000 set/bulan
Agen pemadam kebakaran yang berlaku: |
Perfluorohexanone, nitrogen |
Tekanan pengisian maksimum: |
6.0 Mpa |
Rentang dekompresi nitrogen: |
0 ~ 10 MPa Disesuaikan (umum digunakan: 4.2 MPa, 5.6 MPa) |
Tekanan output obat: |
0 ~ 3,6 MPa |
Gelar Vakum: |
≤ -0,09 MPa |
Mengisi alarm tekanan: |
0 ~ 10 MPa (dapat disesuaikan, lampu alarm akan menyala saat mencapai nilai yang ditetapkan) |
kepadatan pengisian: |
≤ 1420 kg/m³ |
Akurasi mengisi: |
± 0,5% |
Suhu Sekitar: |
0 ~ 50 ℃ |
Persyaratan Daya: |
AC 220V,50Hz |
Ukuran peralatan: |
720 × 800 × 1280 mm (tidak termasuk pelari) |
Utas koneksi eksternal: |
Benang untuk Inlet Reagen dan Antarmuka Outlet dan Nitrogen: M22 × 1.5 |
Agen pemadam kebakaran yang berlaku: |
Perfluorohexanone, nitrogen |
Tekanan pengisian maksimum: |
6.0 Mpa |
Rentang dekompresi nitrogen: |
0 ~ 10 MPa Disesuaikan (umum digunakan: 4.2 MPa, 5.6 MPa) |
Tekanan output obat: |
0 ~ 3,6 MPa |
Gelar Vakum: |
≤ -0,09 MPa |
Mengisi alarm tekanan: |
0 ~ 10 MPa (dapat disesuaikan, lampu alarm akan menyala saat mencapai nilai yang ditetapkan) |
kepadatan pengisian: |
≤ 1420 kg/m³ |
Akurasi mengisi: |
± 0,5% |
Suhu Sekitar: |
0 ~ 50 ℃ |
Persyaratan Daya: |
AC 220V,50Hz |
Ukuran peralatan: |
720 × 800 × 1280 mm (tidak termasuk pelari) |
Utas koneksi eksternal: |
Benang untuk Inlet Reagen dan Antarmuka Outlet dan Nitrogen: M22 × 1.5 |

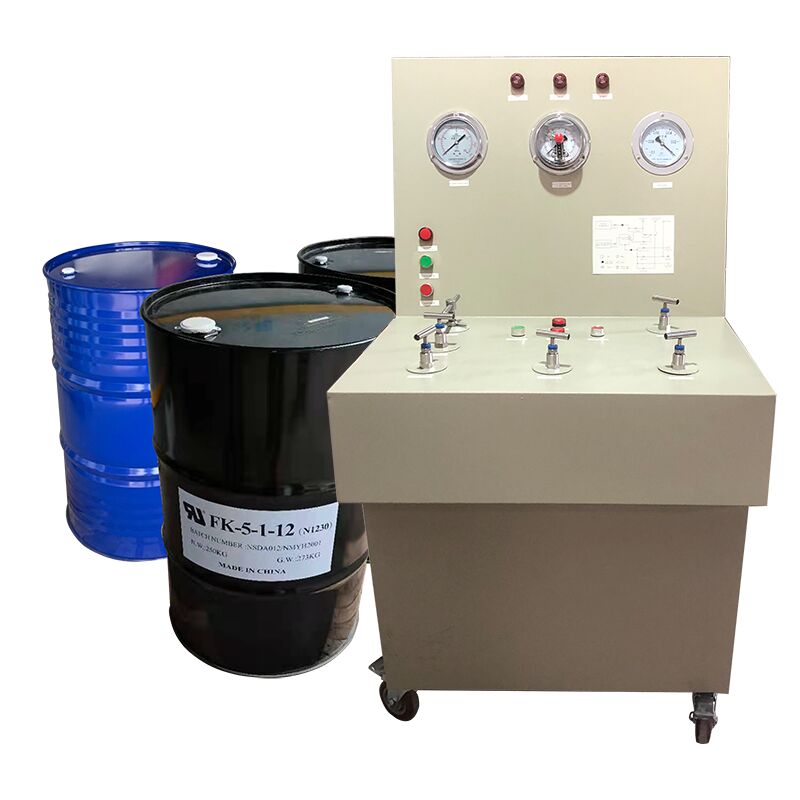

Heptafluoropropane fire extinguishing agent filling equipment
Product Overview:
Heptafluoropropane fire extinguishing agent filling equipment is a professional device that integrates high efficiency, safety and precision, and is suitable for
Heptafluoropropane fire extinguishing agent filling. The equipment is equipped with nitrogen pressure reduction, filling pressure alarm, vacuum pumping system and weight reporting
The alarm node reserves interfaces to support multiple gas cylinder specifications, ensuring the airtightness and accuracy during the fire extinguishing agent filling process
![]()
Technical Parameter:
| Project | Parameter |
| Suitable Extinguishing Media | FM200(HFC-227ea),Nitrogen |
| Maximum Filling Pressure | 5.6 MPa |
| Nitrogen Pressure Reduction Range | 0~ 10 MPa adjustable (commonly used: 2.5 MPa, 4.2 MPa, 5.6 MPa) |
| Drug Output Pressure | 0~3.6 MPa |
| Vacuum Degree | ≤ -0.09 MPa |
| Filling Pressure Alarm | 0~ 10 MPa (Adjustable to set value, alarm warning light on) |
| Filling Density | ≤ 950 kg/m³ |
| Filling Accuracy | ±0.5% |
| Ambient Temperature | 0~50℃ |
| Power Requirements | AC 220V ,50Hz |
| Equipment Size | 720×800×1280 mm (Excluding the wheel) |
| External Connection Thread | Drug inlet and outlet threads and nitrogen interface: M22 × 1.5 |
| Other | Reserved weight alarm indicator interface (requires external intelligent electronic weighing device) |
![]()
Equipment valve body function:
| F1 pressure reducing valve | Control the pressure of nitrogen entering the system to ensure stable and safe filling process. |
| F2 pressure relief valve |
Release excess pressure in emergency situations to protect equipment and gas cylinders from high pressure damage. |
| F3 Pharmaceutical Storage Valve | Control the pipeline for the flow of fire extinguishing agent from the storage tank to the filling cylinder. |
| F4 nitrogen storage valve | Control the entry of nitrogen from the storage tank into the equipment pipeline to provide pressure for the filling of fire extinguishing agents. |
| F5 gas cylinder valve |
Used to connect fire extinguishing agent cylinders and control the opening or closing of cylinder fluid pipelines. |
| F6 vacuum valve | Used to open or close the air inside the extracted gas cylinder, reduce the pressure inside the cylinder, and ensure the purity of the fire extinguishing agent filling. |
FAQ:
Q: Are you a trading company or a manufacturer?
A: We are both a manufacturer and a trading company. We have owned our own factory for nearly 15 years and are committed to providing high-quality service to our overseas customers.
Q: Can you do OEM production?
A: We accept all OEM orders. Simply contact us with your design proposal, and we will provide you with a reasonable price as soon as possible.
Q: How do you ensure product quality?
A: We have TUV/SGS/ISO quality control systems and strictly adhere to them. We have a professional quality inspection team, and each packer conducts a final inspection according to the quality inspection instructions before packaging.
Q: What is the delivery time?
A: Depending on the minimum order quantity, we ship within 10-15 business days after receiving the deposit. 20-foot container orders typically take 30-35 days to fulfill.
Q: Besides filling machines, do you offer other conventional firefighting equipment?
A: Of course. We offer a full range of professional firefighting equipment, from sound and light alarms to smoke exhaust valves, as well as FM200, CO2, and Novec1230 fire suppression systems. Feel free to contact us!
Please inquire about the specific delivery time based on your order quantity.
