Menyoroti:
Automatic tubular fire extinguisher for automobiles
Description:
The Automatic Fire Suppression Tube is an innovative fire protection solution designed for small enclosed spaces such as electrical cabinets and engine compartments. Filled with clean agents like HFC-227ea or Novec 1230, the tube automatically detects heat and ruptures at the hottest point, releasing extinguishing agents directly onto the fire source. This self-activating fire suppression tube provides rapid, reliable, and efficient fire protection without the need for power or manual operation.
Optional accessories:
It integrates both the storage container and discharge system in a single compact unit, providing fast, automatic fire detection and suppression directly at the fire source.The tube system is pressurized and filled with a clean extinguishing agent Novec1230 , FM200. The tube acts as a fire sensor and discharge line at the same time, with stainless steel fittings and a pressure gauge at either end for easy monitoring.
Optional accessories include a temperature sensor, fire alarm module, pressure switch, and GPS tracking system for remote fire notification.
Product advantages:
I. No external power required
II. Early fire detection & suppression integration
III.Cost-effective fire protection solution
IV. Minimal maintenance and long service life
|
|
|
How it works?

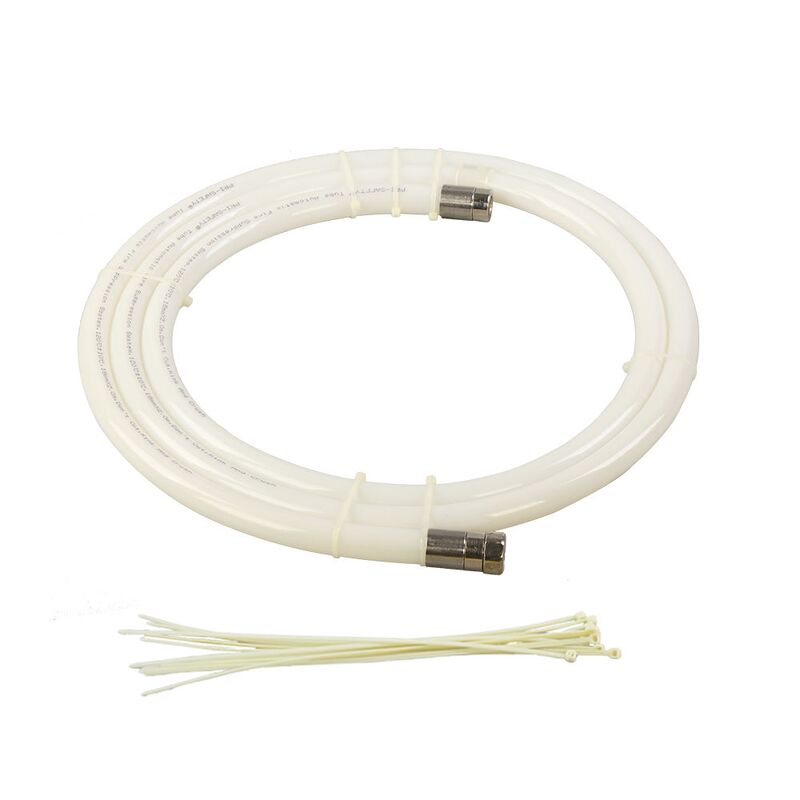

The safety tube automatic fire extinguishing system uses a special polyamide tube with an outer diameter of 18mm. Depending on the required length, it uses compressed gas extinguishing agents such as FM200 (HFC-227ea) or FE-36 (HFC-236fa), also known as heptafluoropropane or hexafluoropropane.
When the temperature reaches 100℃/120℃, the softened tube bursts through a round hole, releasing the extinguishing agent and extinguishing the fire in a very short time.
Applications:
Pipe-type automatic fire suppression systems are used to protect enclosed spaces, including but not limited to:
1) Engine compartments of boats and yachts;
2) Engine compartments of all road vehicles and off-road vehicles: automobiles, vans, buses, minibuses, trucks, rally cars, mining machinery, or construction machinery, etc.
|
|
Parameter:
| Model |
Type of agent |
Amount of agent(g) |
Length of tube(cm) |
Diameter of tube(mm) |
Approximate maximum coverage
(cubic meter)
|
Working temperature(℃) |
Blasting temperature(℃) |
| XJ100H/N |
|
250±5 |
100 |
18 |
0.25 |
From -40 to 80 |
110±10 |
| XJ200H/N |
Hfc-227ea/
Novec 1230 |
500±5 |
200 |
18 |
0.5 |
From -40 to 80 |
110±10 |
| XJ300H/N |
750±10 |
300 |
18 |
0.75 |
From -40 to 80 |
110±10 |
| XJ400H/N |
1000±10 |
400 |
18 |
1 |
From -40 to 80 |
110±10 |
| XJ500H/N |
1250±10 |
500 |
18 |
1.25 |
From -40 to 80 |
110±10 |
Packaging and Shipping for Inert Gas Fire Suppression System
Packaging:
The Inert Gas Fire Suppression System will be carefully packaged to ensure safe delivery and handling. The packaging will consist of the following materials:Heavy-duty cardboard box,Bubble wrap,Protective foam inserts,Instruction manual
Shipping:
We offer worldwide shipping for our Inert Gas Fire Suppression System. The following shipping options are available:
All shipments will be sent using a reliable and trusted courier service to ensure timely and secure delivery.Customers will receive a tracking number via email once their order has been shipped.
Special Handling Instructions:
If there are any special handling instructions for your shipment, please contact us at least 24 hours before your order is shipped. We will do our best to accommodate your request.
FAQ
1)Where can you use this Tube Automatic Fire Suppression System?
Vehicle's engine room, electrical panel, server room, electrical control cabinet, etc.
2)Are your company a manufacturer or trading company?
---We are a professional Manufacturer of automatic fire suppression systems and fire extinguishers. We have our own factory to produce the fire fighting equipments.
3)Can you print our logo on products?
---Yes, no problem.We also support OEM.
4)How long does it take to finish the goods?
--- Depend on order quantity, it will take about in 10-15 working days.
5)What's your MOQ?
---Our MOQ is 100 pcs.
Company Introduction:
Guangzhou Xingjin Fire Equipment Co., Ltd. is situated in Guangzhou, which is vital to connection between China and the rest of the globe. It is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and our professional and experienced staff, which consists of the program design team, the skillful installation team, the quality detecting team, and the after-sell service team, is dedicated to the study and development of HFC-227ea (FM200) products. The FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automated FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube are all currently commonly utilized. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
