High Capacity FM200 Gas Pipe Network - Professional Grade Fire Suppression Equipment

Name: High Capacity FM200 Gas Pipe Network - Professional Grade Fire Suppression Equipment
Brand: Guangzhou Xingjin Fire Equipment Co.,Ltd.
SKU: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2, QMP70/5.6, QMP90/5.6, QMP120/5
Price: 461.00 USD
Availability: InStock

Rincian produk

Tempat asal: GUANGZHOU, CINA

Nama merek: XINGJIN

Sertifikasi: CMA,CNAS,ILAC-MRA,CCC

Nomor model: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2, QMP70/5.6, QMP90/5.6, QMP120/5

Syarat Pembayaran & Pengiriman

Kuantitas min Order: sistem 2 set

Harga: Pricing based on quantity

Kemasan rincian: Kotak Kayu Atau Kotak Luar Kayu Lapis Dengan Tas Gelembung Atau Kertas

Waktu pengiriman: Menurut kuantitas produk

Syarat-syarat pembayaran: T/T,L/C

Menyediakan kemampuan: 30000set/bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Rincian produk

Menyoroti:

Volume Silinder:	4	Kapasitas Gas:	3
Agen:	H	Tekanan Penyimpanan:	4
Tekanan Sumber Udara Perangkat Drive:	6	Catu daya kerja sistem:	A
Area Batas Perlindungan Sistem:	8	Volume Batas Perlindungan Sistem:	3

Volume Silinder:	4
Kapasitas Gas:	3
Agen:	H
Tekanan Penyimpanan:	4
Tekanan Sumber Udara Perangkat Drive:	6
Catu daya kerja sistem:	A
Area Batas Perlindungan Sistem:	8
Volume Batas Perlindungan Sistem:	3

Deskripsi Produk

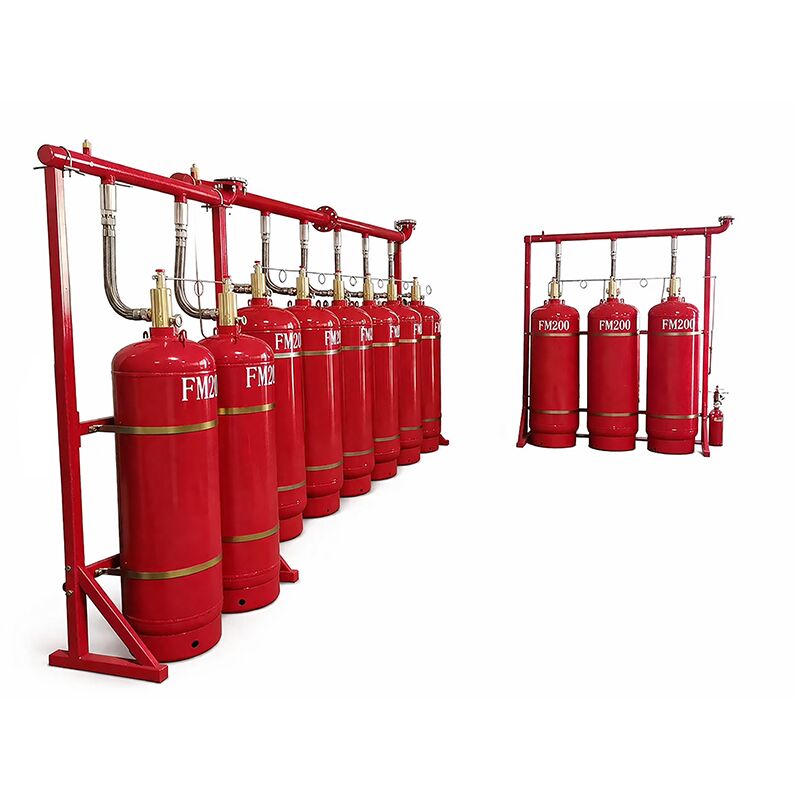

Pipe network Suspended Extinguishing Equipment

Product Introduction:

The FM200 Pipe Network Fire Suppression System (HFC-227ea) is a globally recognized clean agent fire protection solution. FM200 is a colorless, odorless, non-conductive gas with zero ozone depletion potential (ODP), making it an environmentally friendly alternative to halon systems.

This system adopts a multi-cylinder configuration combined with a pipe network, enabling protection for single or multiple zones. It is ideal for commercial and industrial applications where fast response and asset protection are critical, such as data centers, power facilities, and mission-critical environments.

Name of fire extinguishing agent	Heptafluoropropane
Chemical composition	CF3CHFCF3
Conveying method	Prefabricated		Pipe network type
Assembly method	Cabinet type	Suspended type	Internal storage pressure	External storage pressure
Construction method	Flexible to install and takes up little space		Independent gas cylinder room
Pharmaceutical storage pressure	2.5/1.6MPa		4.2/5.6MPa	0.3MPa
Danger of handling/long-term storage	The risk of handling and long-term storage is relatively low, and the safety factor of storage detection is relatively high
Design selectivity	Small area, low construction difficulty and movable		Large area, multiple protective zones, conveying distance 30-80 meters	Large area, multiple protection zones, and conveying distance up to 200 meters
Dosage of medicine	For a single area		It is used for combined distribution and in relatively small quantities
Advantages	Takes up little space, is easy to install, has low construction costs and good fire extinguishing effects		Multiple protection zones share the same agent, with low cost and good fire extinguishing effect
Application	Computer rooms, distribution rooms, archives rooms, financial institutions, government units, oil depots, etc

System classification:

According to the use requirements, it can be composed of independent unit systems, and the combined distribution system can implement fire protection for single zone and multiple zones respectively.

When designing and calculating this type of system, the fire extinguishing agent consumption is calculated based on the agent consumption for the largest protected area, and the maximum number of protected areas shall not exceed eight.

1. Unit-Based System

A single cylinder system protecting one hazard zone, suitable for independent areas

2. Combined Distribution System (Multi-Zone)

One system protects multiple zones (up to 8 zones) using selector valves, reducing overall cost
